Mesh Style Wotofo RDA Coil 10pcs, UAE

Description

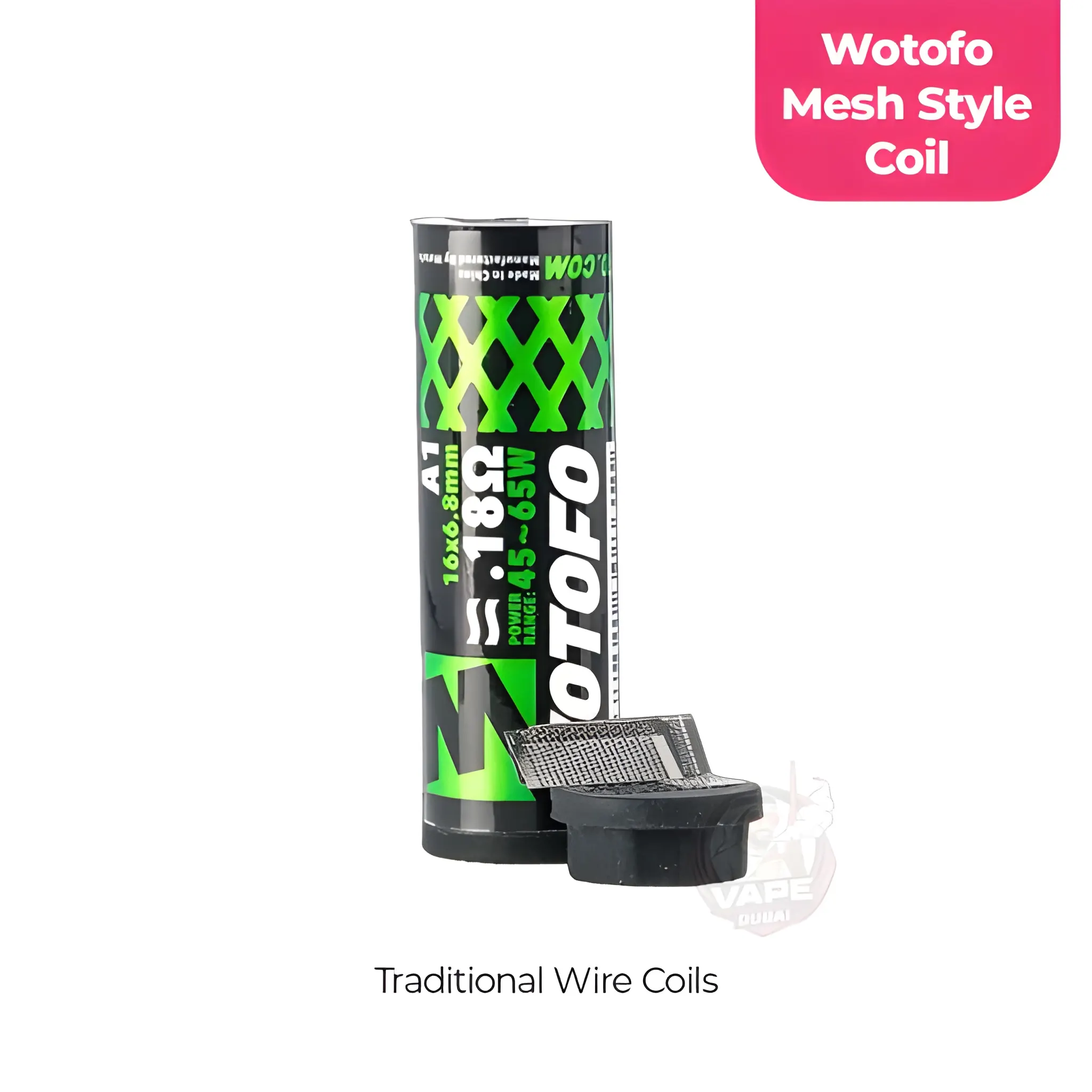

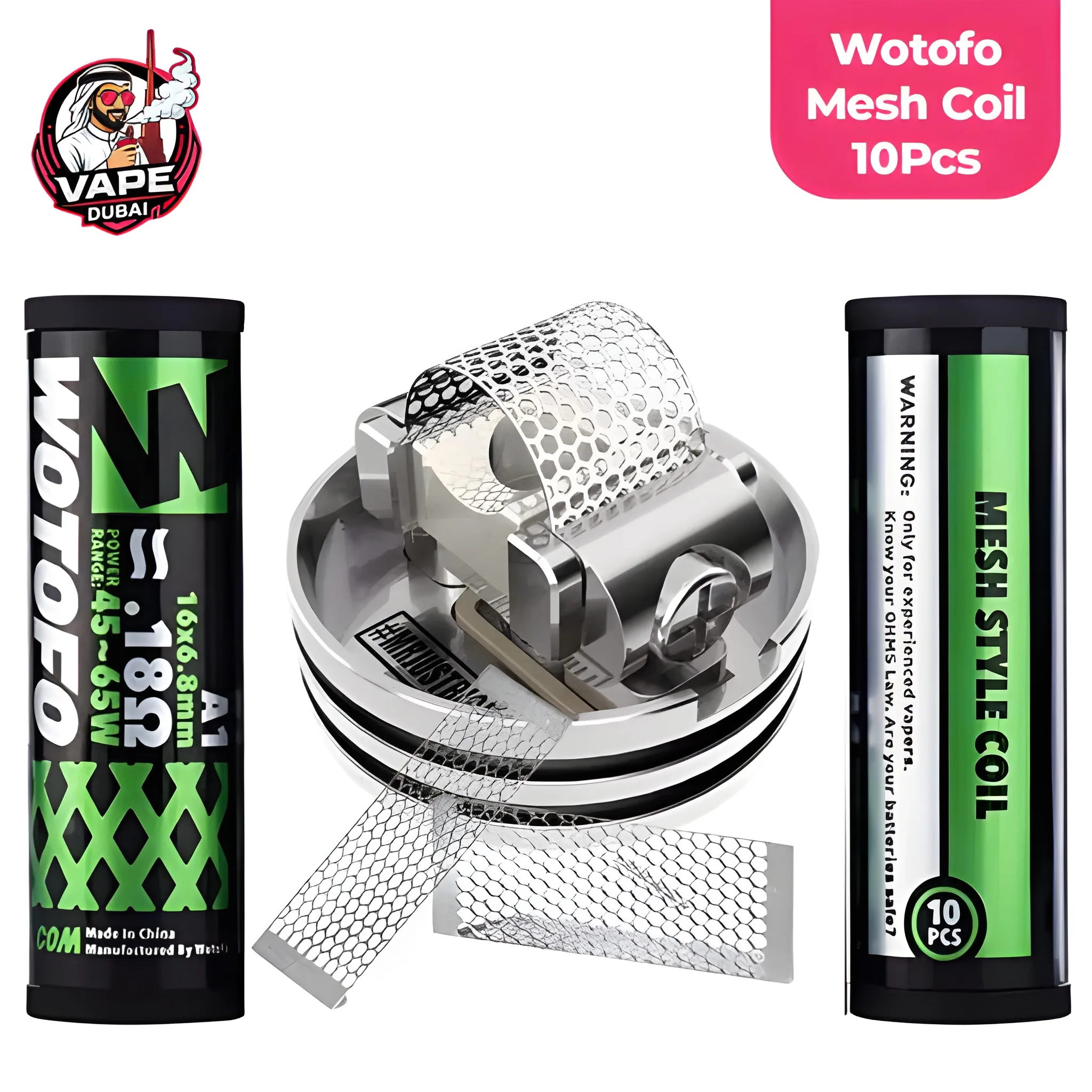

Buy 10pcs Wotofo Mesh Style Coil in the UAE: The Replacement Mesh Sheet For Profile RDA

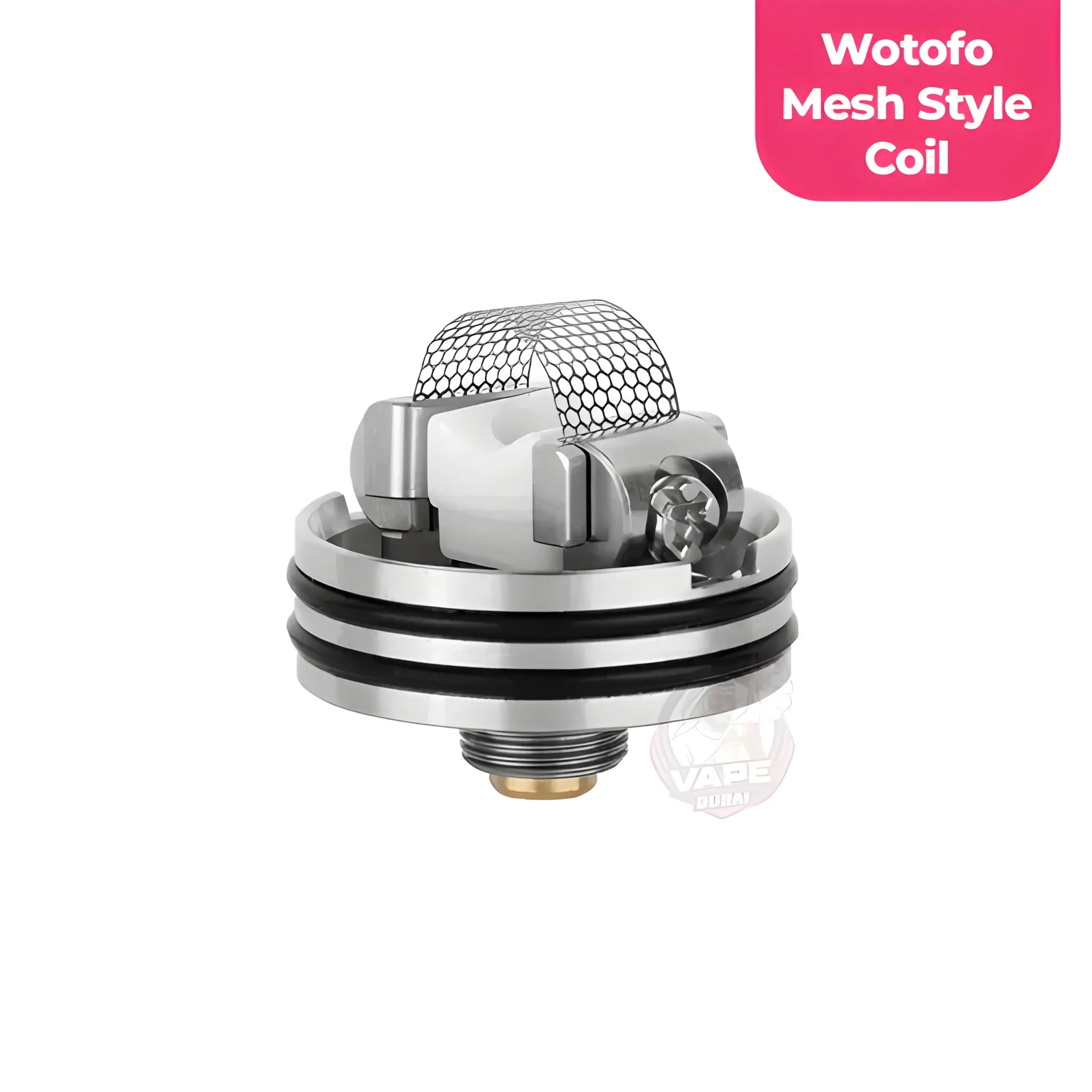

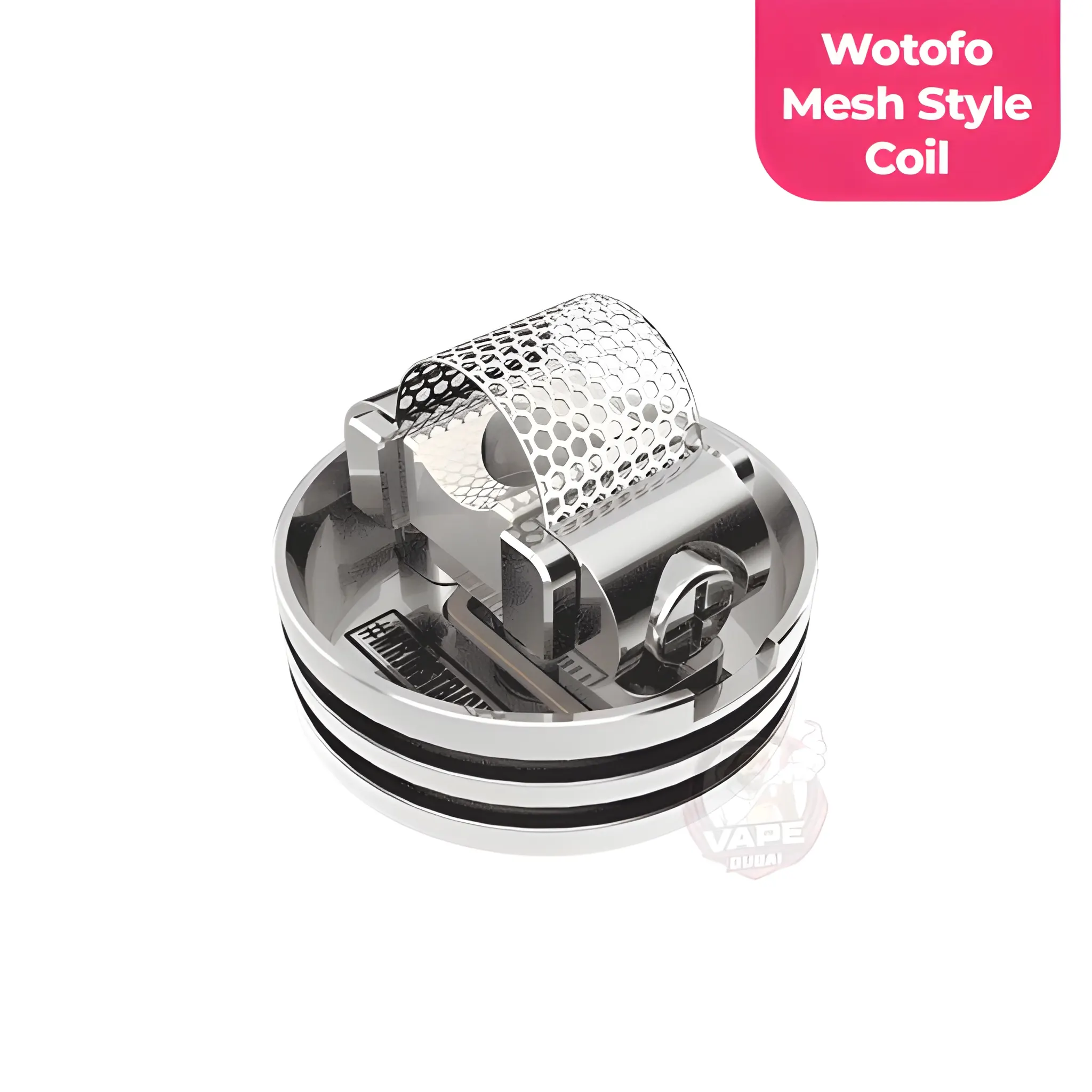

The Wotofo Profile RDA is one of the most significant rebuildable atomizer releases of the past decade because it shows that a flat mesh sheet heating element produces flavor quality that wound round wire coils cannot match. The principle is simple: the larger the surface area of the heating element in contact with the cotton, the more e-liquid is vaporized per draw, and the more accurate and intense the resulting flavor. The original Wotofo mesh style RDA coil’s 16mm x 6.8mm surface area dominates the contact area of any standard 3mm round wire coil at comparable resistance and the flavor difference is immediately and consistently noticeable.

These are the replacement Kanthal A1 mesh sheets that keep the Profile RDA platform performing at the level that made it famous. 10 sheets per pack, deformation-resistant, easy to clean, and quick to replace. Place your order at Vape Dubai today!

Mesh Architecture vs Round Wire

Traditional round wire coil:

A single or multi-strand wire wrapped into a cylindrical coil shape. Cotton is threaded through the centre of the coil. The heating surface area is limited to the circumference of the wire strand in contact with the cotton at each wrap point; a small, linear contact area per unit of resistance.

Wotofo Mesh Style Coil:

A flat, perforated metal sheet clamped against the full width of the cotton. The heating surface is the entire 16mm × 6.8mm face of the mesh sheet, hundreds of individual contact points across a broad, flat surface that touches cotton simultaneously across its entire area. When power is applied, heat distributes evenly and instantly across the full mesh surface, vaporizing e-liquid from every cotton contact point simultaneously rather than from the isolated contact points of a wound coil.

The result: faster ramp-up, more even vaporization, denser vapor, and more accurate flavor because more e-liquid is converted to vapor per draw without the localised overheating that produces burnt notes in traditional wire coils when wattage is increased.

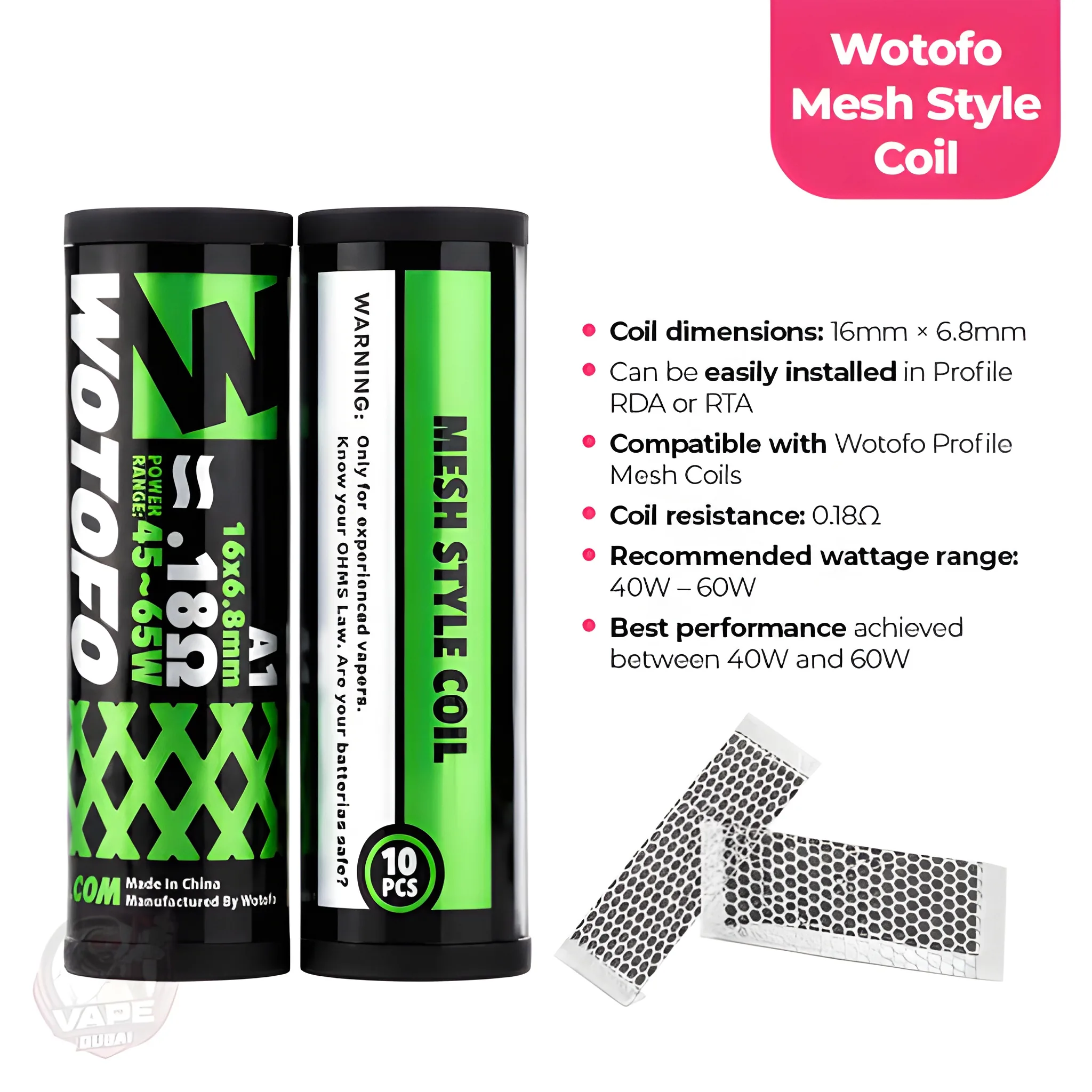

Key Features

• Material: Kanthal A1 (KA1)
• Resistance: 0.18Ω mesh for balanced performance
• Wattage Range: 40-60W
• Dry Burn: 15-20W maximum without cotton
• Dimensions: 16mm x 6.8mm flat mesh sheet
• Pack Contents: 10 replacement mesh sheets
• Architecture: Flat perforated mesh design for even heating
• Compatibility: Designed for Wotofo Profile RDA series
• Cotton Requirement: Works with Wotofo Xfiber 6mm (sold separately)

Kanthal A1: Why It’s the Right Material for Profile Mesh Sheets

• Deformation resistance: Kanthal A1 is a harder, more structurally rigid alloy than Nichrome-based alternatives.
• High durability: KA1 mesh sheets can be cleaned and reused multiple times before replacement is necessary.
• Easy cleaning: The flat perforated structure has no intricate wire gaps or wrapped coil geometry to clean around.
• Stable resistance: KA1 has a low temperature coefficient of resistance (TCR), meaning its resistance stays consistent across normal vaping temperature ranges.

Compatible Atomizers

Atomizer	Compatibility	Notes
Wotofo Profile RDA (original)	Full	Designed for this device
Wotofo Profile Unity RTA	Full	Same mesh clamp system
Wotofo Profile M RTA	Full	Same mesh clamp system
Wotofo Profile PS Dual Mesh RDA	Full	Uses same sheet size
Profile 1.5 RDA	Not compatible	Use nexMESH coils instead
Profile RDTA	Not compatible	Use nexMESH for Profile RDTA
Other RDAs with mesh clamp	Check	Some third-party mesh RDAs accept 16mm x 6.8mm sheets

How to Install and Maintain Wotofo Mesh Style Coils

Installation:

1. Open the Profile RDA’s mesh clamp by loosening the two clamping screws
2. Remove the spent mesh sheet from between the two clamp posts
3. Take a new Wotofo mesh sheet from the pack and hold it by its edges, avoid touching the mesh surface where possible
4. Position the new mesh sheet between the clamp posts with the sheet flat and centered
5. Tighten the clamping screws evenly both sides simultaneously to maintain the sheet’s flat position; do not overtighten as this can deform the mesh
6. Read resistance on your mod, should read approximately 0.18Ω
7. Before wicking: dry-burn the sheet at 15-20W for 1-2 second pulses only, the mesh should glow evenly across its full surface with no bright spots at the edges or dark areas in the centre
8. Place your 6mm Wotofo Xfiber cotton under and over the mesh sheet in the Profile RDA’s cotton channel, the cotton should lie flat against the full mesh surface with good contact
9. Saturate the cotton thoroughly with your e-liquid before the first draw
10. Begin vaping at 45W and increase to your preferred wattage within the rated range

Cleaning a used mesh sheet:

1. Remove the cotton from the RDA
2. Dry-burn the mesh sheet at 15-20W only until residue ashes off, do not exceed 20W without cotton present
3. Allow the sheet to cool completely
4. Rinse under warm water and dry thoroughly before re-wicking
5. Repeat the dry-burn check at 15-20W after cleaning to confirm even heat distribution is restored

Conclusion

The replacement mesh sheet that keeps your Profile RDA delivering the flavor that made it legendary. Kanthal A1 construction for deformation resistance and durability. 0.18Ω at 40-60W. Easy to clean and re-use. 10 sheets per pack. Buy from Vape Dubai for fast delivery across Dubai, Abu Dhabi, Sharjah, Fujairah, Ajman, and anywhere across the UAE.

FAQs

Is this the same mesh sheet for all Profile RDA versions?

The 0.18Ω Wotofo Mesh Style Coil is compatible with the original Profile RDA, Profile Unity RTA, Profile M RTA, and Profile PS Dual Mesh RDA. It is NOT compatible with the Profile 1.5 RDA or Profile RDTA, those require the Wotofo nexMESH coil instead.

What cotton should I use with the Profile mesh coil?

Wotofo Xfiber 6mm cotton is the dedicated pairing for Profile mesh applications, the 6mm width is designed to provide full contact across the mesh sheet’s width. The 3mm Xfiber is for standard wire coils, not Profile mesh clamp systems.

Can I clean and reuse the mesh sheets?

Yes, Kanthal A1 mesh sheets can be cleaned by dry-burning at 15-20W to ash off residue, then rinsing with warm water. Allow complete drying before re-wicking. Multiple clean-and-reuse cycles are possible before the sheet degrades.

What wattage should I start at for a new mesh sheet?

Start at 45W with a freshly wicked and saturated sheet. Take a few draws and assess the vapor temperature and density before increasing. Most Profile RDA vapers settle between 50W and 60W for daily use. Do not dry-burn at operating wattages, 15-20W only for dry-burn checks.

Why does the mesh sheet produce better flavor than a round wire coil?

The mesh sheet’s 16mm x 6.8mm surface area provides hundreds of simultaneous cotton contact points across its full face, vaporizing e-liquid evenly and extensively per draw. Round wire coils contact cotton at isolated wrap points only, a fraction of the total contact area.
